Santa Fe Living Quarter
The Santa Fe is the ultimate combination of Sundowner’s most popular features and affordability. This all aluminum trailer is lightweight for towing ease and fuel economy. Available in 2 to 10 horse models, the Santa Fe offers a bathroom with a shower and toilet, small kitchen, boot box or sofa and air conditioner. Numerous other options are available inside and out to make your new trailer uniquely yours!
- Living Quarter
- Trailer
Standard Features |
|
| 15,000 BTU air conditioner with heat strip | |
| Wallboard walls and ceiling | |
| Wood window frames | |
| Raised panel cabinet doors | |
| Overhead cabinets above kitchen area | |
| 3 cu. ft. gas/electric refrigerator | |
| Microwave | |
| Formica counter tops | |
| Single bowl kitchen sink | |
| Crank up TV Antenna | |
| AM/FM radio, CD player with interior speakers | |
| Day/night shades | |
| Choice of vinyl flooring with carpeted bedroom | |
| Mattress | |
| Quilt | |
| 2 Night stands (8' only) | |
| TV Stand | |
| Wardrobe and linen closet | |
| Recessed LED lights | |
| Retractable shower door | |
| Towel rack, ring and paper holder | |
| Toilet | |
| Shower | |
| Power roof vent in bathroom | |
| Metal grab handle | |
| Fresh water tank | |
| 12 volt demand water pump | |
| City water hook up | |
| 31 gallon black water tank | |
| 31 gallon gray water tank | |
| Sewer dump hose and storage compartment | |
| 2, 20lb. propane tanks with automatic change over valve | |
| 6 gallon LP electric gas water heater, automatic recovery | |
| Water drains and water heater bypass for easy winterizing | |
| Consumer protection seals | |
| Code approved in all 50 states | |
| 30 amp marine style 30' power cord lifeline with 15 amp adapter | |
| 12 volt charge line to truck | |
| 12 volt battery disconnect switch | |
| One deep cycle battery | |
| 120 volt kitchen and bathroom receptacles, GFI protected | |
| USB charge port in bunk and living area | |
| All wiring checked and rechecked at 1,080 volts | |
| LP gas leak detector | |
| Smoke alarm and fire extinguisher | |
| Emergency exit windows | |
| Tempered safety glass with positive locks and screens | |
| Full fiberglass insulation in floors, sidewalls and ceiling |
Standard Features |
|
| Coupler | Adjustable Gooseneck, 2 5/16" |
| Load Type | Slant |
| Number of Horses | 2 - 10 horse |
| Trailer Width | 6' 9" wide |
| Inside Height | 7' |
| Stall Width | 39" |
| Construction | All aluminum |
| Floor | All aluminum |
| Exterior top half | Prepainted aluminum skin |
| Exterior lower half | Extruded aluminum sides |
| Axles/Brakes | Rubber torsion axles 4 Wheel electric brakes with safety breakaway |
| Bumper | Full width rear rubber bumper |
| Safety Lights | LED clearance and 4 tail lights |
| Spare | Spare tire and wheel |
Horse Area |
|
| Dividers | Air flow divider(s) with pads |
| Floor Mats | In horse area |
| Feed Doors | Drop down feed window with face grill per stall |
| Air Gaps | 2 Air gaps with Plexiglas on rump side |
| Kick panel | SunCoated™ kick panels and rump walls |
| Rear Door | Double rear doors with Plexiglas |
| Vent | Pop-up vent per horse stall |
| Interior Light | Dome light in horse area |
| Tie Ring | 1 Outside and 2 inside tie rings per stall |
| Rear tack | Collapsible rear tack with saddle rack, tack hooks and light |
Popular Options |
|
| Skin color: white, black, silver, charcoal, champagne | |
| Furnace | |
| 2 Burner cook top | |
| Center access door | |
| Electric motor assist on jack | |
| Additional dome lights | |
| Load lights | |
| Rear ramp | |
| Hydraulic Jack | |
| Awning | |
| Hayrack | |
| Rumpside window package per model* | |
| *Includes a window per stall on rump side, window in load side rear door, side access door, and SunCoat® on the headside. | |
Click for downloadable product sheetFloorplans Other Floorplans and Sizes Available
(Click for Larger View)

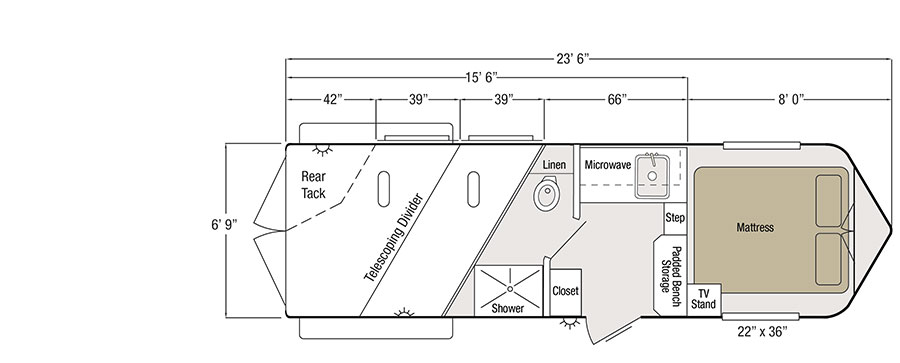

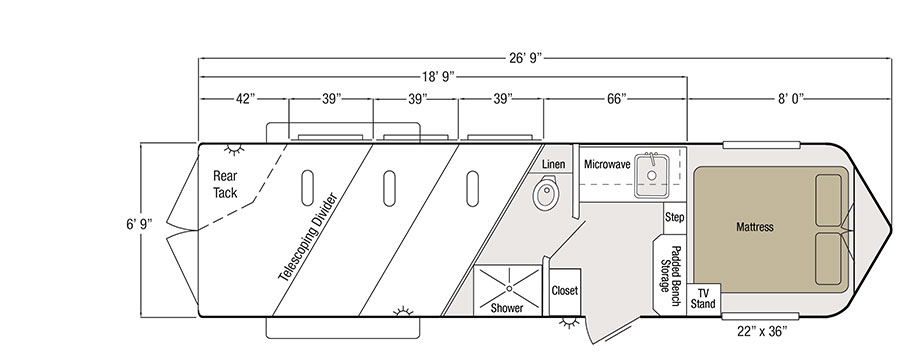

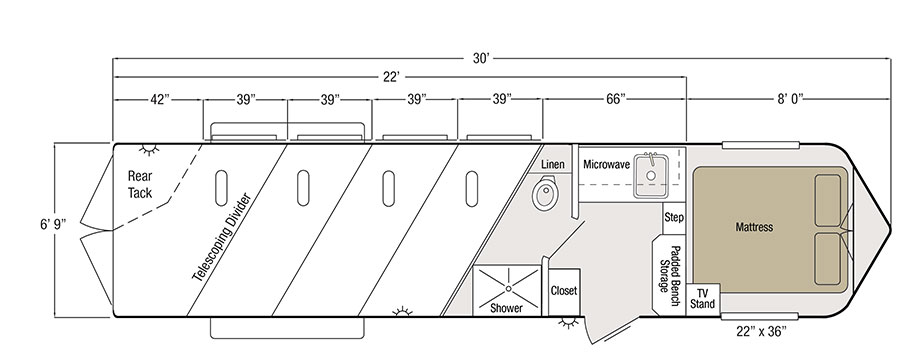

6905 w/boot box bench standard.

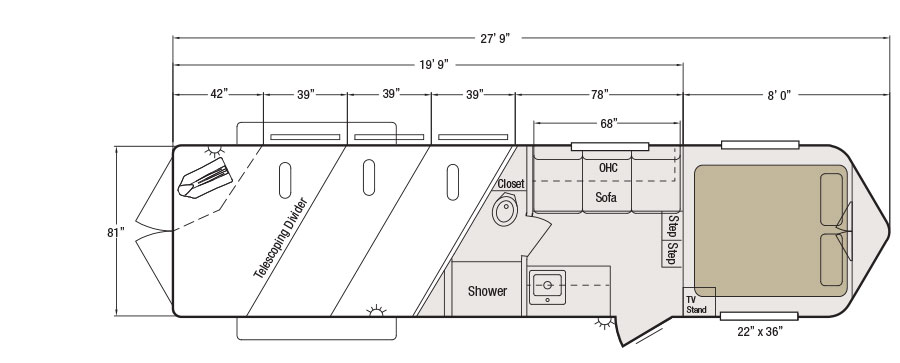

6906 w/sofa standard (dinette optional)

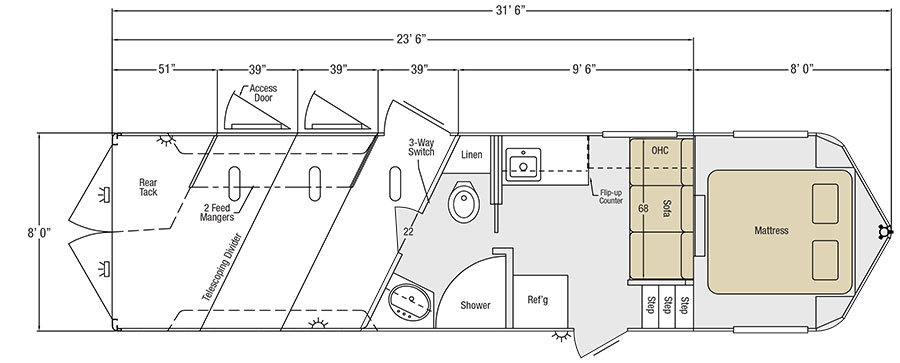

8009 w/sofa standard
*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
