Horizon 8010 Living Quarter
The Horizon 8010 Living Quarter boasts the industry leading characteristics that are expected in a Sundowner Trailer including all aluminum construction, full bathroom and an array of standard features for the comfort and safety of owners and horses. The 8010 comes in 2 to 8 horse models. The Living Quarter features an air conditioner, furnace, microwave, 2 burner cook top, AM/FM radio CD/DVD player, sofa, walk-in closet and a separate toilet and shower.
- Living Quarter
- Trailer
Standard Features |
|
| 15,000 BTU air conditioner with heat strip | |
| Wallboard walls and ceiling | |
| Wooden window frames | |
| Raised panel cabinet doors | |
| Overhead cabinets above sofa and kitchen area | |
| 8 cu. ft. 12v electric refrigerator where applicable | |
| 2 Burner cook top with cover, range hood and exhaust fan | |
| Microwave | |
| Formica counter tops | |
| Single bowl kitchen sink | |
| TV Antenna | |
| AM/FM radio, CD/DVD player with interior and exterior speakers | |
| Jack knife sofa | |
| Day/night shades | |
| Color coordinated valances | |
| Choice of vinyl flooring with carpeted bedroom | |
| Mattress | |
| Quilt | |
| TV Stand | |
| Wardrobe and linen closet | |
| Recessed LED lights | |
| Towel rack, ring and toilet paper holder | |
| Toilet | |
| Shower | |
| Power roof vent in bathroom | |
| Metal grab handle | |
| Fresh water tank, size varies | |
| 12 volt demand water pump | |
| City water hook up | |
| 31 gallon black water tank | |
| 31 gallon gray water tank | |
| Sewer dump hose and storage compartment | |
| 2 - 20lb. propane tanks with automatic change over valve | |
| 6 gallon LP electric/gas water heater, automatic recovery | |
| Water drains and water heater bypass for easy winterizing | |
| Furnace | |
| Heavy duty 65 amp 12 volt power converter, battery charger | |
| 12 volt charge line to truck | |
| 12 volt battery disconnect switch | |
| 30 amp marine style 30' power cord lifeline with 12 amp adapter | |
| 120 volt kitchen and bathroom receptacles, GFI protected | |
| All wiring checked and rechecked at 1,080 volts | |
| LP gas leak detector | |
| Smoke alarm and fire extinguisher | |
| Emergency exit windows | |
| Tempered safety glass with positive locks and screens | |
| Full fiberglass insulation in floors, sidewalls and ceiling | |
| Consumer protection seals | |
| Code approved in all 50 states |
Standard Features |
|
| Coupler | Adjustable Gooseneck, 2 5/16" |
| Load Type | Slant |
| Number of Horses | 2 - 8 horse |
| Trailer Width | 8' 0" |
| Inside Height | 7' 6" |
| Stall Width | 39" |
| Construction | All aluminum |
| Floor | All aluminum |
| Exterior | Prepainted aluminum skin top half, extruded aluminum sides lower half |
| Axles/Brakes | Rubber torsion axles 4 Wheel electric brakes with safety breakaway |
| Bumper | Full width rear rubber bumper |
| Safety Lights | LED clearance and 4 tail lights with switch for operating lights while parked |
| Landing Gear | Drop leg jack |
| Spare | Spare tire and aluminum wheel |
| Battery | Double battery box with 2 batteries |
Horse Area |
|
| Dividers | Air flow divider(s) with pads |
| Floor Mats | In horse area |
| Feed Doors | Drop down feed doors with sliding window per stall behind first |
| Horse Doors | First stall access door with cam latch and black latch |
| Mangers | Feed mangers with access doors for all stalls behind the first |
| Plexiglas | Two air gaps with Plexiglas on rump side |
| SunCoat™ | SunCoated™ 48" high in entire horse area |
| Rear Door | Double rear doors with Plexiglas on load side and solid rear tack door |
| Vent | Pop-up vent per horse stall |
| Interior Light | Dome light in horse area |
| Tie Ring | 1 Outside and 2 inside tie rings per stall |
| Rear Divider | Telescoping rear divider |
| Rear Tack | Collapsible rear tack with saddle rack, tack hooks and light |
| Tack Room Door | Tack room door with window and fold down step |
| Interior Door | Center access door from horse area to living quarter |
| Exterior Light | Porch Light |
| Escape windows | 22" x 36" Escape windows in gooseneck |
Popular Options |
|
| Skin colors: white, black, silver, charcoal, champagne | |
| Additional dome lights | |
| Load lights | |
| Aluminum face guard | |
| Rear ramp | |
| Awning | |
| Hayrack | |
| Round Shower | |
| Pocket door to bathroom | |
| Skylight dome in shower | |
| Stainless nose wrap | |
| Weld on hinge package | |
| Rumpside window package per model (window per stall on rump side and a window in the load side rear door) | |

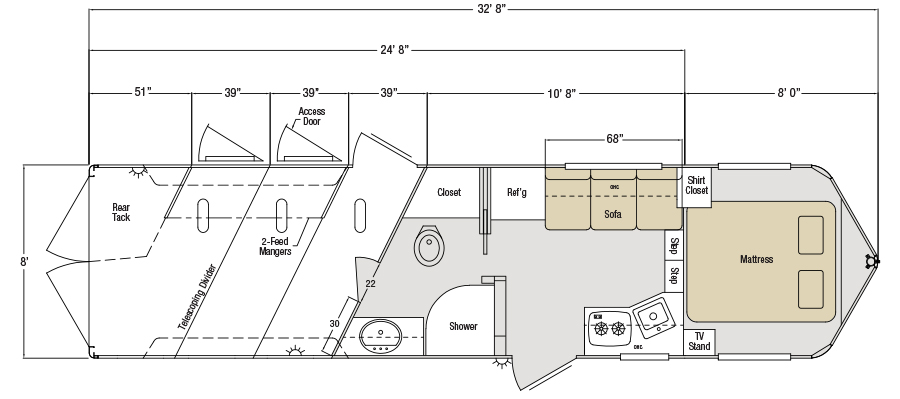

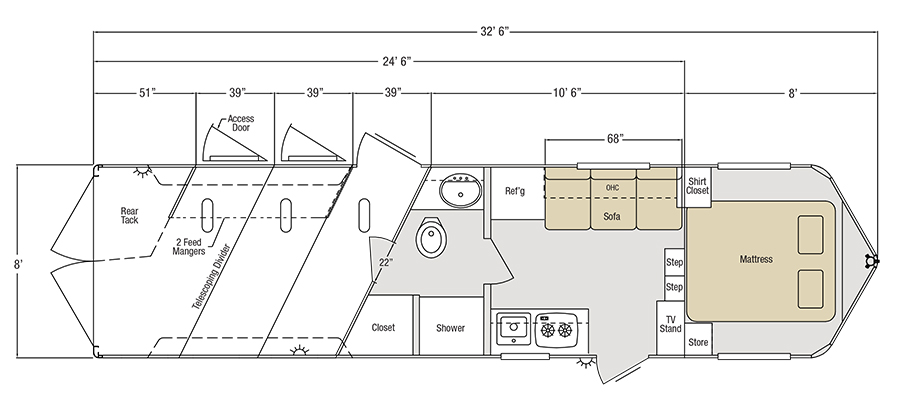

Click for downloadable product sheetFloorplans
(Click for Larger View)
*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
